Rumah > Produk> Blok Terminal> PTV 2.5 DIN Rail Terminal Block Side-Entry Push-in Connection 2.5mm2 26-12AWG Kabel Pengkabelan Konektor Kawat Listrik

PTV 2.5 DIN Rail Terminal Block Side-Entry Push-in Connection 2.5mm2 26-12AWG Kabel Pengkabelan Konektor Kawat Listrik

PTV 2.5 DIN Rail Terminal Block Side-Entry Push-in Connection 2.5mm² 26-12AWG Cable Wiring Electrical Wire Connector
PTV 2.5 DIN Rail Terminal Block Side-Entry Push-in Connection 2.5mm² 26-12AWG Cable Wiring Electrical Wire Connector PTV 2.5 DIN Rail Terminal Block Side-Entry Push-in Connection 2.5mm² 26-12AWG Cable Wiring Electrical Wire Connector PTV 2.5 DIN Rail Terminal Block Side-Entry Push-in Connection 2.5mm² 26-12AWG Cable Wiring Electrical Wire Connector PTV 2.5 DIN Rail Terminal Block Side-Entry Push-in Connection 2.5mm² 26-12AWG Cable Wiring Electrical Wire Connector PTV 2.5 DIN Rail Terminal Block Side-Entry Push-in Connection 2.5mm² 26-12AWG Cable Wiring Electrical Wire Connector
Informasi Dasar
Tempat asal: Cina
Nama merek: JIVTO
Kuantitas min Order: 10.000 pcs
Waktu pengiriman: 30-40 hari kerja
Syarat-syarat pembayaran: T/T, Western Union, L/C
Harga terbaik Hubungi sekarang
Informasi Detail
Nomor model: PTV2.5 Bahan: NYLON PA66
Metode koneksi: Koneksi push-in Nilai Tegangan/Arus: 800V/24A
ukuran konduktor: 26-12 AWG

Deskripsi Produk

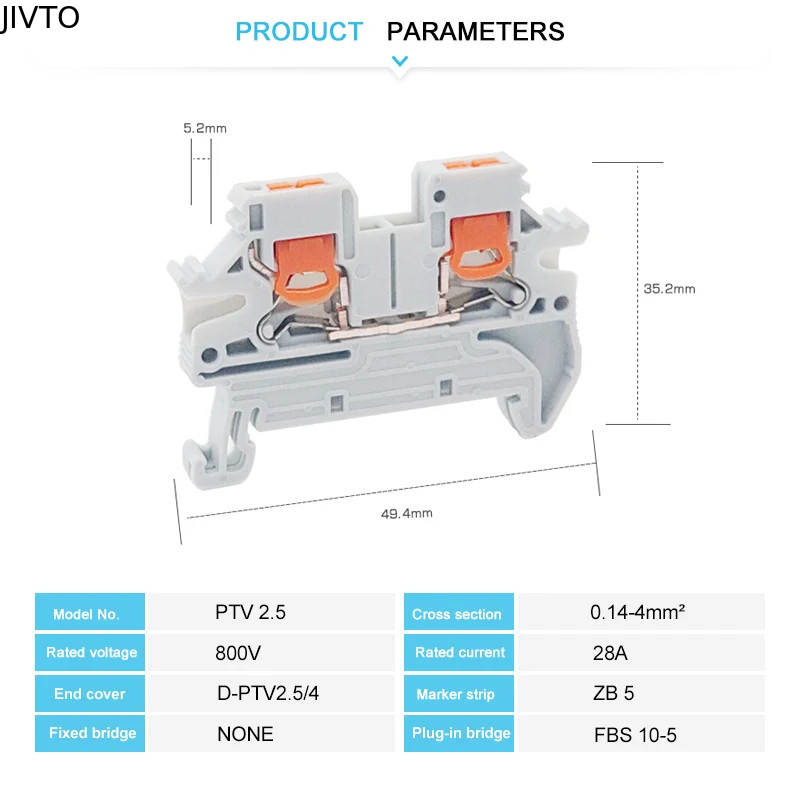

Parameter Teknis

Nomor Model PTV 2.5
Warna Abu-abu, Biru, Oranyeu, warna lain dapat disesuaikan
Panjang/Tinggi/Lebar (mm) 49.5/35.2/5.2
Metode koneksi Koneksi push-in
Bahan Nylon PA66
Tegangan nominal/Arus 800V/24A
Bagian lintas, Kabel padat/lembut 0.14-4 mm2/ 0.14-2.5 mm2
Ukuran Konduktor 26-12 AWG
Tipe pemasangan NS 35/7.5
Standar IEC 60947-7-1
Logo Logo yang disesuaikan didukung
Sertifikasi CE



PTV 2.5 DIN Rail Terminal Block Side-Entry Push-in Connection 2.5mm2 26-12AWG Kabel Pengkabelan Konektor Kawat Listrik 0

PTV 2.5 DIN Rail Terminal Block Side-Entry Push-in Connection 2.5mm2 26-12AWG Kabel Pengkabelan Konektor Kawat Listrik 1

PTV 2.5 DIN Rail Terminal Block Side-Entry Push-in Connection 2.5mm2 26-12AWG Kabel Pengkabelan Konektor Kawat Listrik 2



PTV 2.5 DIN Rail Terminal Block Side-Entry Push-in Connection 2.5mm2 26-12AWG Kabel Pengkabelan Konektor Kawat Listrik 3
